Everything You Need to Know About CO2 Laser Cutting Machines

October. 18, 2024

As the digital age creates new opportunities for entrepreneurship, laser cutting machines have become a popular way for people to turn their passion projects into profitable businesses. While CO2 laser cutting technology has been around since the 1970s and was once the domain of large industrial companies, it's now accessible to nearly anyone. With the right equipment, you can easily learn how to use a laser cutter to create marketable merchandise, art, or craft products.



Whether you're interested in engraving or cutting, this could be the perfect way to launch your own business. No prior experience is required, and you don't even need to be skilled at drawing by hand. Keep reading to learn more about CO2 laser cutters and how to get started using them.



What Is Laser Cutting?



Laser cutting is the process of using a focused laser beam to precisely cut or engrave materials. It can be used for a variety of purposes, such as finishing, trimming, engraving, or cutting complex shapes that would be difficult to achieve with drills or manual tools. A wide range of materials can be cut with a laser, which we'll explore in more detail later in this article.



The laser beam melts through the material's surface, resulting in a smooth, clean finish. The process begins by piercing a small hole at the edge of the design, and the beam then follows the programmed path to cut or engrave the material.



Technically, the laser is melting the material it passes through, so it functions more like a laser melting machine than a traditional cutting tool! This allows it to handle everything from delicate fabrics to hard materials like diamonds. Laser cutting provides excellent accuracy and control, enabling you to create detailed cuts or engravings of any size.

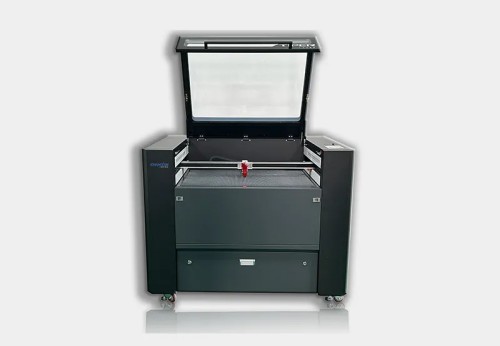

industrial laser cutter for sale


The History of the CO2 Laser Cutter



The first production laser was developed by Western Electric in 1965, primarily used to punch holes in diamond dies with precision. Two years later, in 1967, a German scientist advanced the technology by creating a nozzle laser cutter that combined a CO2 laser beam with oxygen-assist gas, successfully cutting a 1mm steel sheet. As the race to refine this technology accelerated, Boeing entered the scene and explored its potential for cutting materials like ceramics and titanium.



By 1975, the modern CO2 laser cutting system was introduced, marking a significant step forward. In the 1980s, industrial entrepreneurs began recognizing the lucrative opportunities in laser engraving. Today, with laser cutters more accessible than ever, anyone with ambition can purchase a machine and start their own engraving or cutting business, making it a tool for both industry and artisan enterprises alike.



How Do CO2 Laser Cutting Machines Work?



Modern CO2 laser cutting machines generate a laser beam inside a sealed glass tube filled with carbon dioxide gas. A high electrical current is passed through the tube, exciting the CO2 gas particles and causing them to emit light. This light, when concentrated to such a high intensity, generates significant heat—enough to melt or vaporize materials with extremely high melting points.



The tube contains two mirrors: a fully reflective mirror on one end and a partially reflective one on the other. The light bounces back and forth between these mirrors, amplifying its intensity with each reflection. Once the light is bright and powerful enough, it passes through the partially reflective mirror, exiting the tube as a laser beam. This beam is then directed by a series of mirrors that help shape the beam's path toward the workpiece.



Inside the laser head, the final mirror redirects the laser through a focus lens, which concentrates the beam onto a precise point on the material. This focus is key to the CO2 laser's ability to produce clean, accurate cuts and engravings on a wide variety of materials.



The machine also includes a computer numerical control (CNC) system that guides the laser head across the work bed. This system, combined with the mirrors and focus lens, allows the laser to cut complex shapes without sacrificing accuracy or power. The laser can switch on and off rapidly, enabling intricate engraving and detailed designs with exceptional precision.



What Can You Do With a Laser Cutter?



A carbon dioxide (CO2) laser cutting machine is versatile, offering three primary functions: cutting, engraving, and marking.



Cutting

In laser cutting, the beam passes entirely through the material, creating clean, precise cuts. The quality of the cut depends on the material, with some, like wood, developing slightly darker edges from the heat. Acrylic, on the other hand, is one of the best materials for laser cutting, as it leaves a smooth, glossy edge with no discoloration.



Marking

Marking alters the surface of the material without cutting or removing it. With CO2 lasers, this process is mostly used on metals. A special marking solution is applied to the metal, and after drying, it reacts with the laser beam to leave a permanent mark on the surface.



Engraving

Engraving is popular because it allows for detailed customization of various objects. The laser removes the top layer of the material without cutting all the way through, making it ideal for personalizing items like keychains, glassware, and apparel. This function is widely used in professional and creative projects due to its versatility.



Advantages of Using a CO2 Laser Cutter



1. No Contact

The laser beam never physically touches the material. Instead, the intense heat causes the material to melt, reducing the risk of damage during the process. This non-contact method also prevents wear and tear on the machine's components, ensuring longer equipment life.



2. Low Power Consumption

CO2 laser cutters are energy-efficient compared to other cutting equipment. They require minimal power, making them suitable for use at home without the need for specialized electrical setups. Additionally, replacement parts are typically affordable, making the system cost-effective to maintain.



3. Safety

Laser cutting is a safer alternative to traditional cutting methods, as it doesn't involve blades or other sharp tools. The laser beam is safely contained within a glass tube, and as long as safety protocols are followed, the risk of injury is extremely low.



4. Precision

CO2 lasers offer unparalleled precision, producing highly accurate and smooth cuts or engravings. The intense heat from the laser beam precisely melts the material according to the design programmed into the machine, delivering results that are far more refined than manual methods.



5. Versatility

CO2 laser cutters are widely used across various industries, from medical device manufacturing to art and design. Their ability to cut, engrave, and mark a wide range of materials makes them a versatile tool for both industrial and creative applications.
