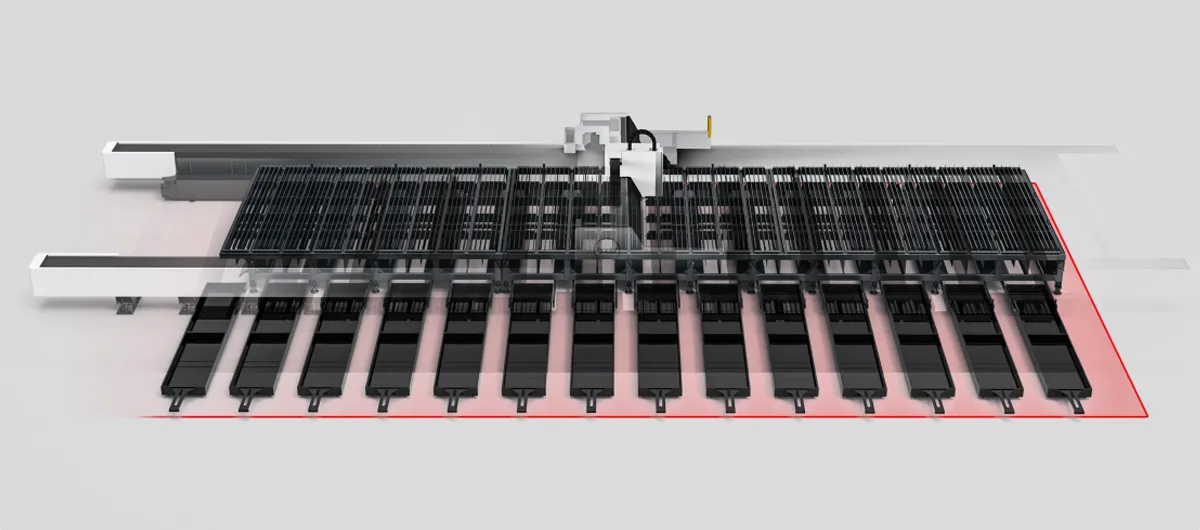

Super Large Format
Large format customized, 12m or more processing benefits
Super Large Format
Large format customized, 12m or more processing benefits
Product Parameter

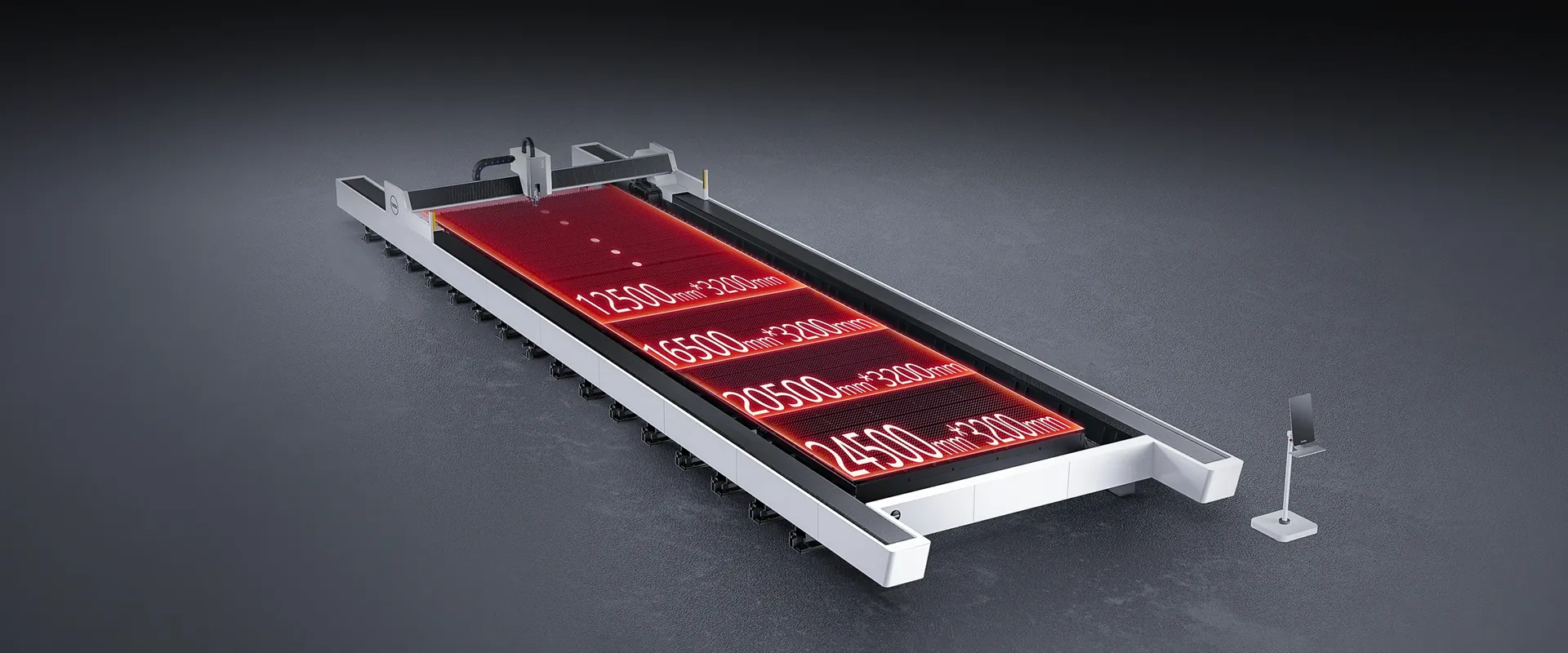

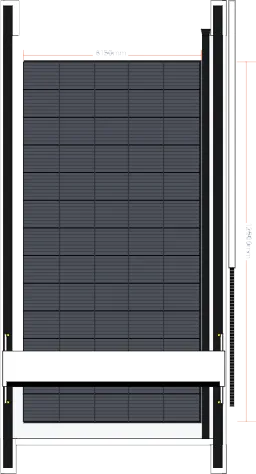

| [Processing Format] | 2500mm*6150mm 16500mm*6150mm 20500mm*6150mm |
| [Maximum linkage speed] | 80m/min |
| [Maximum acceleration] | 0.8G |
| [Z-axis travel] | 135mm |
| [Positioning accuracy] | ±0.05mm/m |
| [Repeated positioning accuracy] | ±0.03mm |

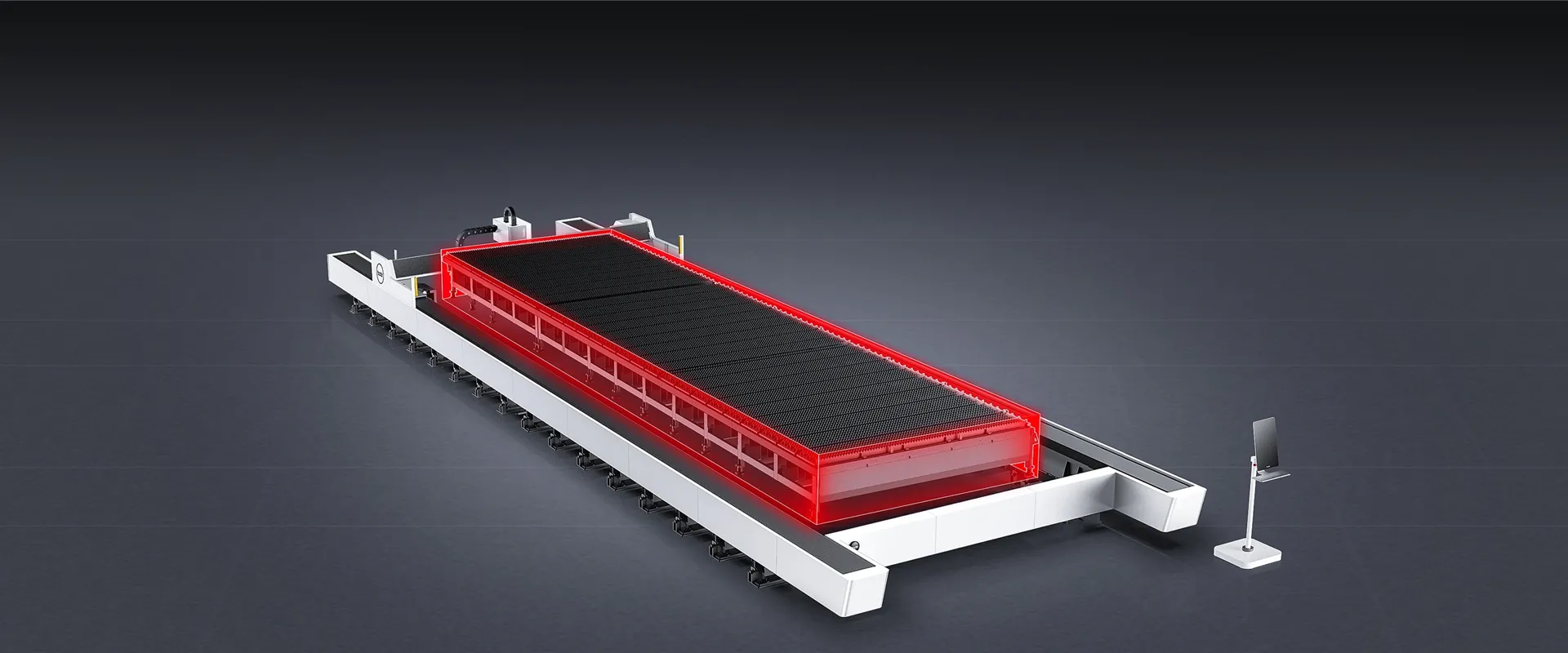

| [Table bearing] | 36000kg 48000kg 60000kg 72000kg |
| [Overall dimension] | 18860mm*8686mm*2200mm 22860mm*8686mm*2200mm 30860mm*8686mm*2200mm |
| [Laser work (optional)] | 12000W 22000W 24000W 30000W 60000W |
Sample Display
Here is a sample presentation
Industry Application
Medical Industry
Auto Parts
Textile and Clothing Industry
3C Electronics Industry
Scientific Research and Education Industry
Brittle Material Industry
Self-developed Core Three Large Pieces
